Advanced Optical
Fiber Cleaver
CT110/111
The CT110/111 is designed for cleaving silica fiber with 80 to 250µm cladding diameter. It is also capable of precision angled fiber cleaves.
Product Variation
| Model | CT110 | CT111 |
Appearance | |  |
| Cladding diameter | 80 to 250μm | |
| Cleave length | Approx.11~44mm | |
| Angle cleaving | ― | ✔ |
| Fiber holder | FH-100 series / FH110 series / FH-70 series *1 | |
*1 Holder Adapter Plate (AD-CT110-FH70) is necessary to use FH-70 series.
Features
Cleaving tension
automatic setting
Automatic cleaving tension function can tension and can save your optimization.
Blade position
automatic changing
A new blade mechanism controls blade height automatically. It keeps good blade condition to obtain stable cleaving quality.
Wireless communication
by RFID
RFID tag equipped to the fiber holder communicate with CT110/CT111 and choose proper cleaving program*1
*1 It is necessary to set the fiber holder to be used and the cleaving program to the in advance using the attached PC software.

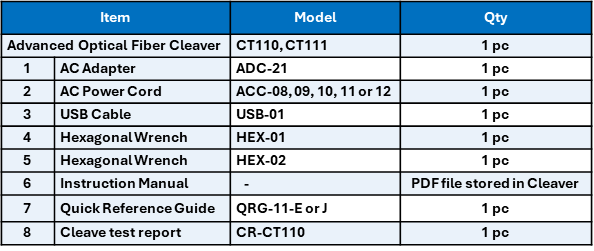

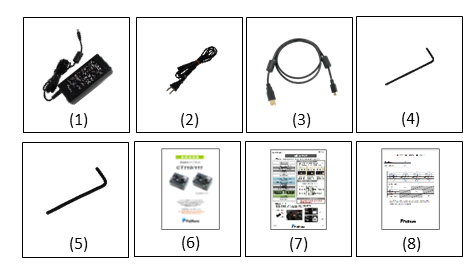

Standard Package

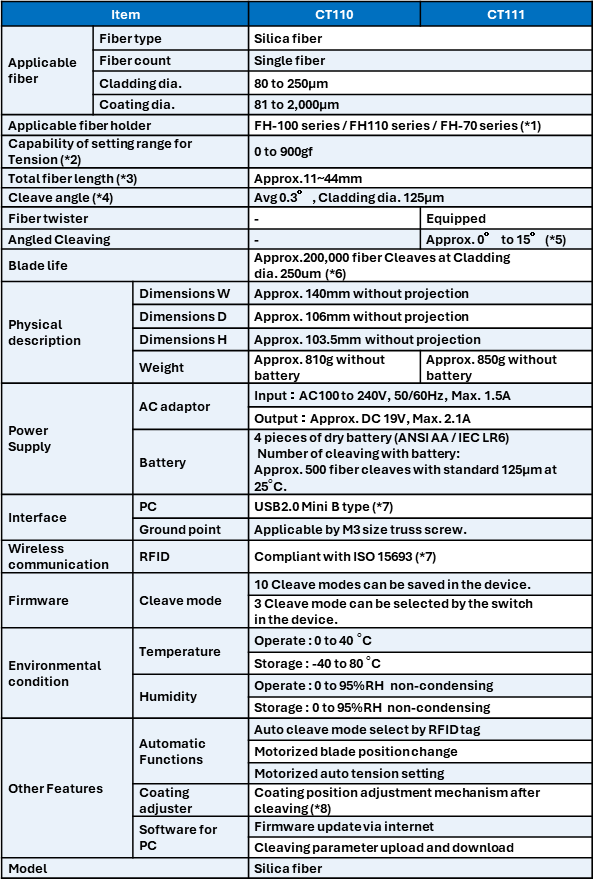

Specifications
Options
1-5-1, Kiba, Koto-ku, Tokyo 135-8512, Japan
©2025, Fujikura Ltd. All rights reserved. 91310-2309-0146-03 2505
Specifications are subject to change without notice.
