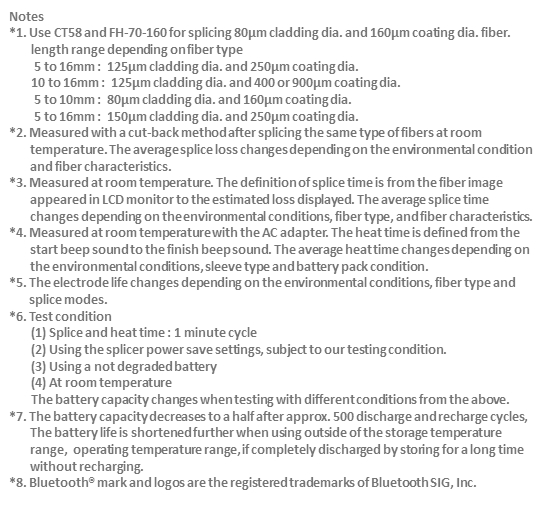

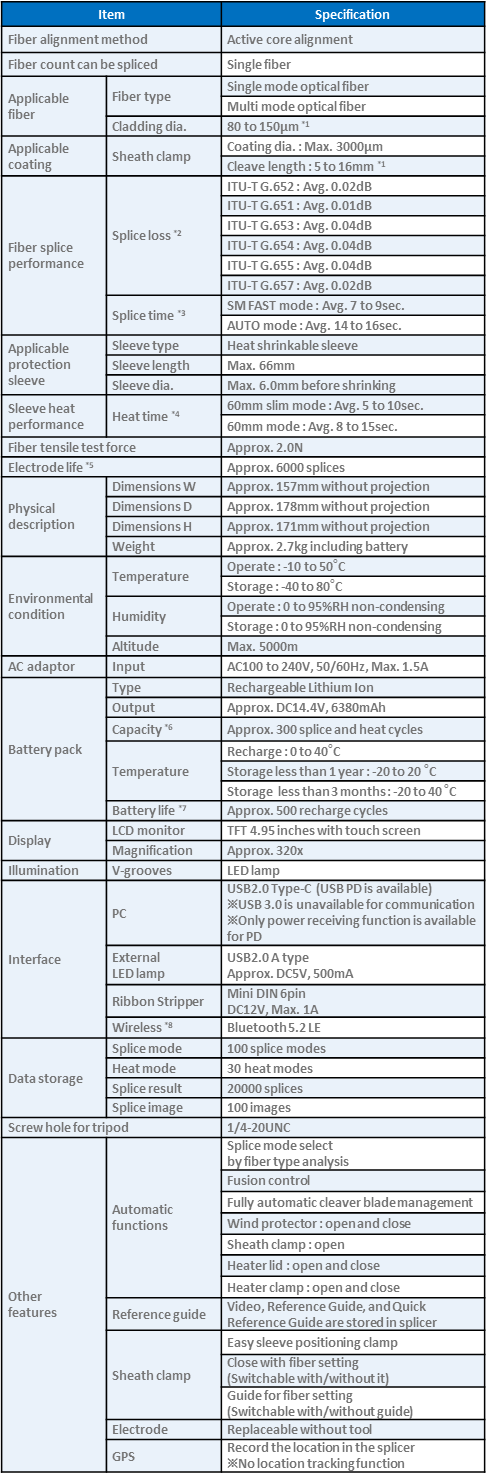

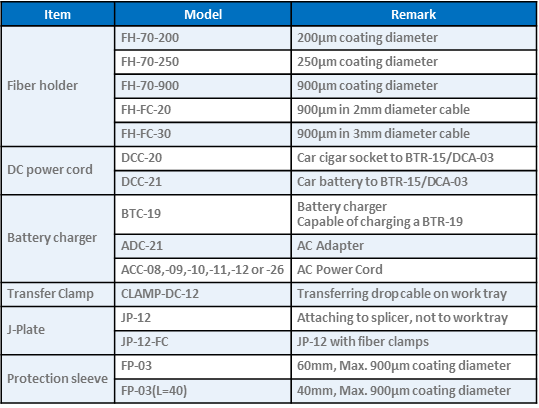

Core Alignment Fusion Splicer 100S

Core Alignment
Fusion Splicer

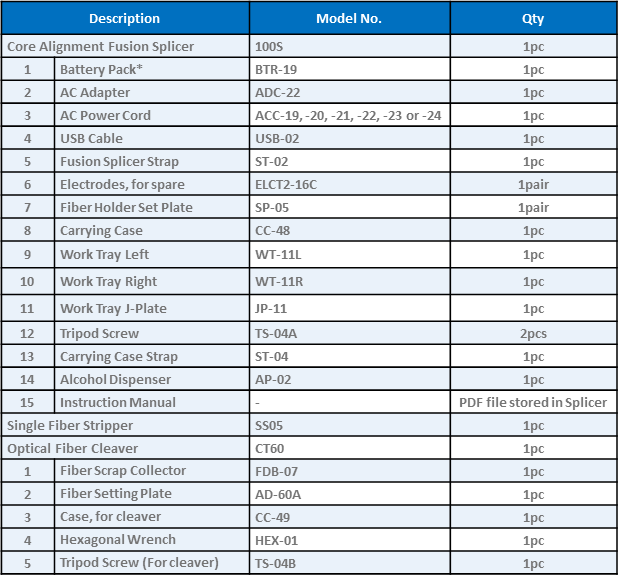

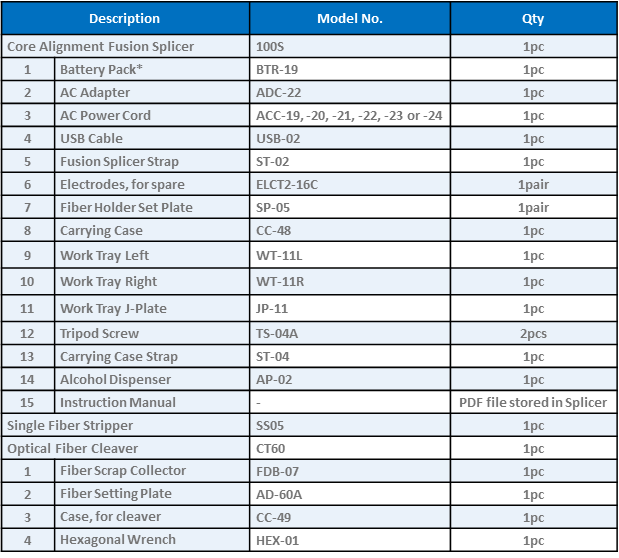

100S Kit

Faster, easier, changing the field use with advanced fusion splicers.

Features

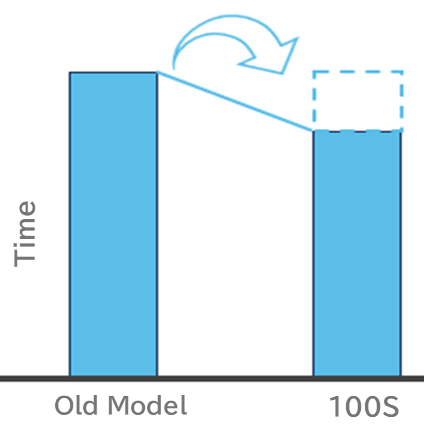

Achieved 20% faster operation

Simultaneous optical fiber preparation.

The processes of optical fiber preparation required for fusion splicing, which usually needs repeating separately for both left and right-side optical fiber, can now be done simultaneously for two optical fibers with the 100S.

Stripping
The single optical fiber stripper SS05 can strip two optical fibers simultaneously.

Cleaving

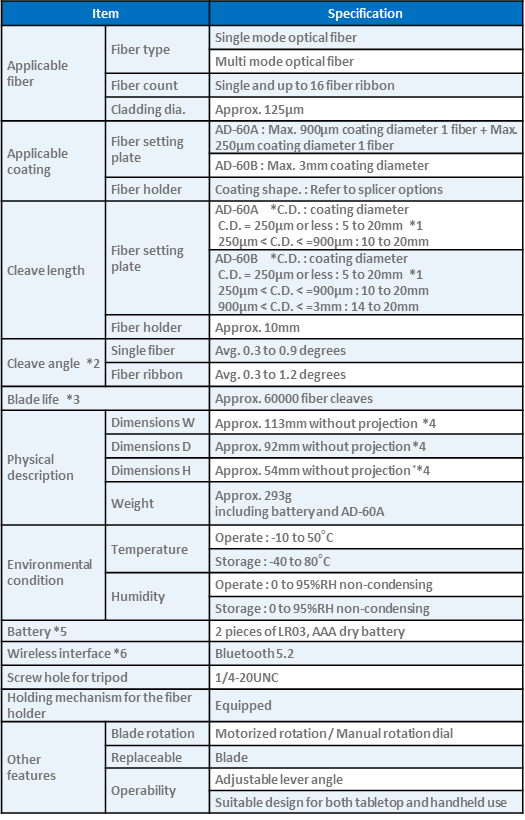

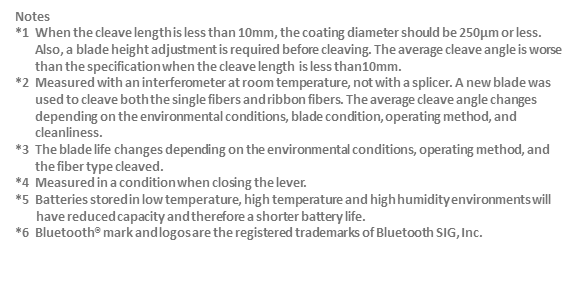

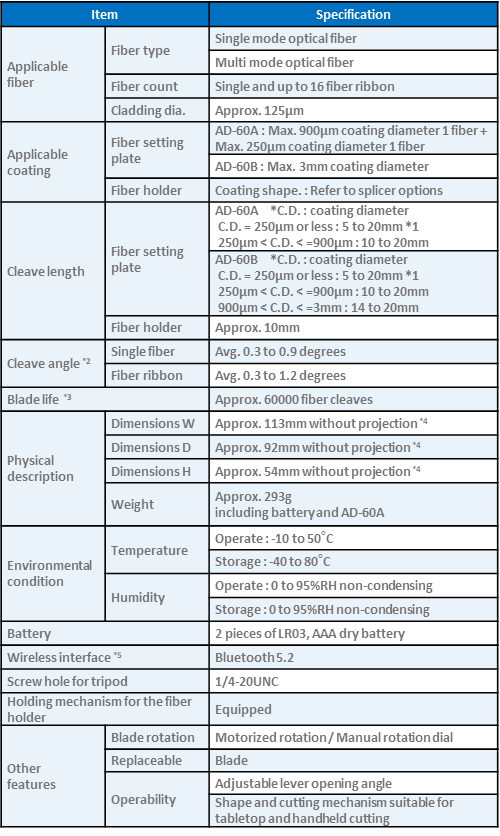

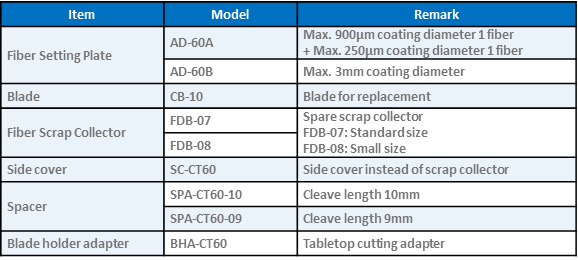

The optical fiber cleaver CT60 can cleave two optical fibers simultaneously.

Setting
When setting the optical fibers,
the clamp cover closes automatically,
allowing two fibers to be set simultaneously.

Stripping
The single optical fiber stripper SS05 can strip two optical fibers simultaneously.

Cleaving
The optical fiber cleaver CT60 can cleave two optical fibers simultaneously.

Setting
When setting the optical fibers,
the clamp cover closes automatically,
allowing two fibers to be set simultaneously.

Improvement of ease of use

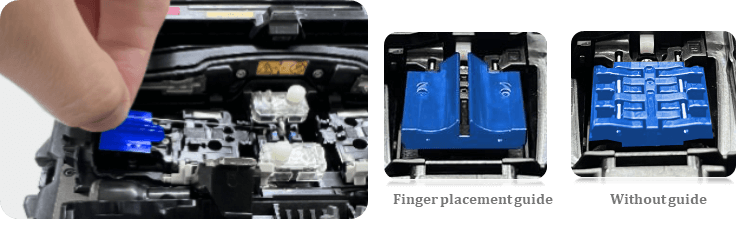

Simplified optical fiber set using the finger placement guide.

A V-shaped guide has been added to the optical fiber setting area. By aligning your finger with the guide, it has become easier to place the optical fiber accurately.
By changing the shape of the set section, it is also possible to use it without a guide. Customers can choose the option that is easier for them to use.

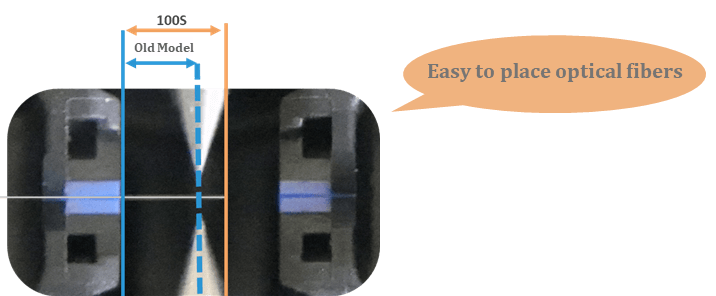

Expanded allowable range for fiber setting

It is possible to splice when the optical fiber tip extend beyond the electrode.

Wind protector with automatic open and close function.

After optical fiber setting, the wind protector automatically closes and opens automatically once the splicing process finishes. Similarly, the heating lid and heater clamp automatically close after optical fiber setting and open automatically after heating is completed.

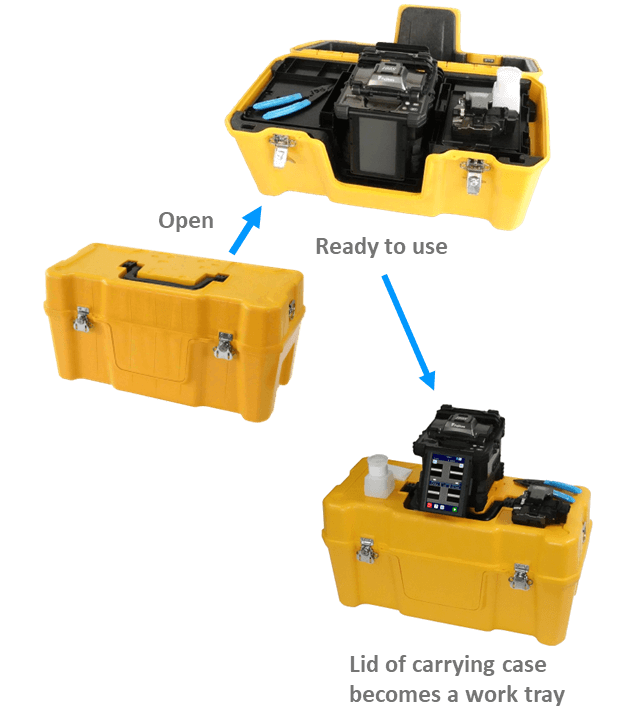

Carrying case with Work Tray

Carrying Case

There are multiple ways to utilize the 100S fusion splicer carrying case. The 100S fusion splicer is ready to use just by opening the case, but it is also possible to use the 100S fusion splicer on top of the carrying case or only with the work tray depending on the work environment.

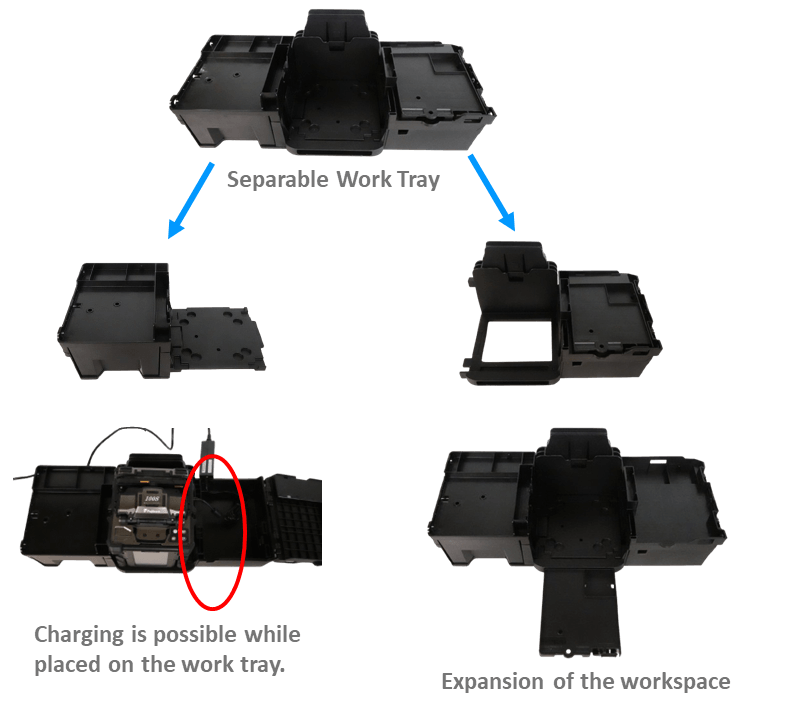

Work Tray

The work tray has many functions. Since the work tray is separable, it allows for work in confined spaces while also being expandable to create a larger workspace, making it a highly versatile. Additionally, it is possible to charge the 100S while it is placed on the work tray.

User-friendly features

GPS

The 100S is equipped with GPS.
It acquires and stores the location information at the time of splicing in its memory. By verifying the splice locations along with the fusion results, it helps with daily workflow management.

Linked with smartphone app

With the app Splice+, you can view the location information and splice results.
Additionally, it equipped with a locking function to prevent theft.

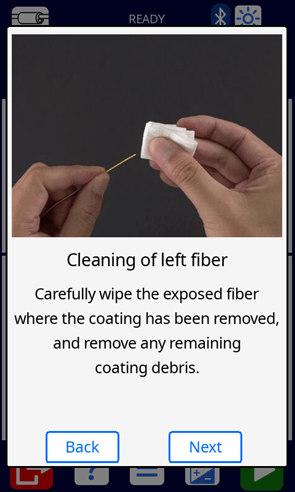

Splice Coach function

Step-by-step instructions appear on the screen, allowing for seamless and confident work.
For those who do not require the Splice Coach display, it can be turned off in the settings.

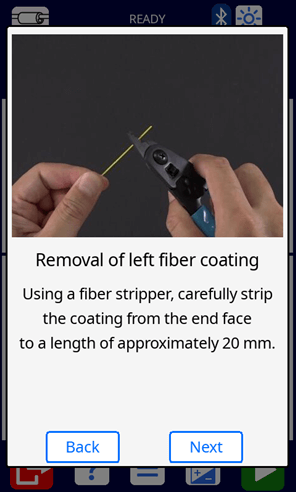

Example) Fiber Preparation procedure

Compatible with mobile batteries

Supports charging via standard mobile batteries, ensuring reliability even during sudden power loss.

Please confirm that any mobile battery connected to this product meets USB PD standards and adhere to the mobile battery’s precautions. Do not use mobile batteries that are incompatible with this machine.

Enhanced Splice Quality

Active Fusion Control Technology

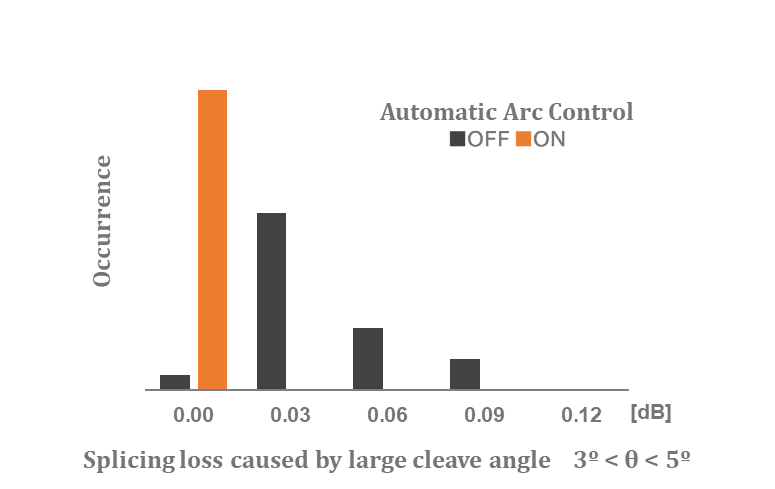

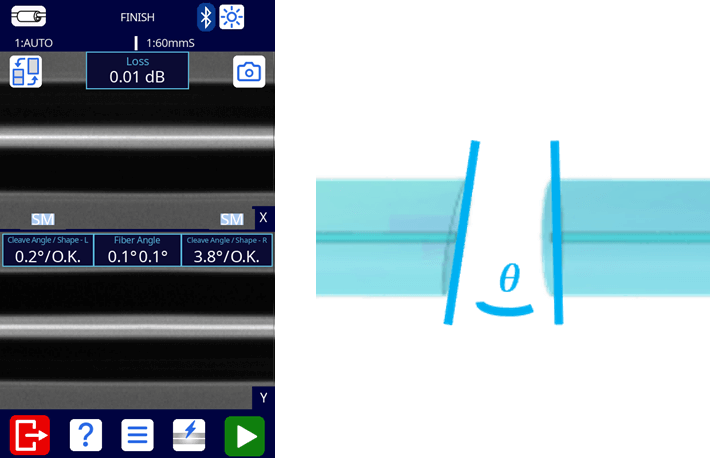

1. Active Fusion control by cleave condition

One of main causes of high splice loss is bad cleave end face. The 100S fusion splicer analyzes the condition of both L and R cleave end faces and performs optimal fusion control. This new technology improves splice loss significantly and reduces the risk of re-installation.

*G.652 splicing result measured with a cut-back method. The splicing result changes depending on the fiber type and fiber characteristics.

2. Active Fusion control by fiber brightness

Fusion is easily affected by changes in the environment.
The 100S fusion splicer uses real-time fusion parameter control by analyzing the fiber’s brightness intensity during fusion. It contributes to stable, reduced splice loss.

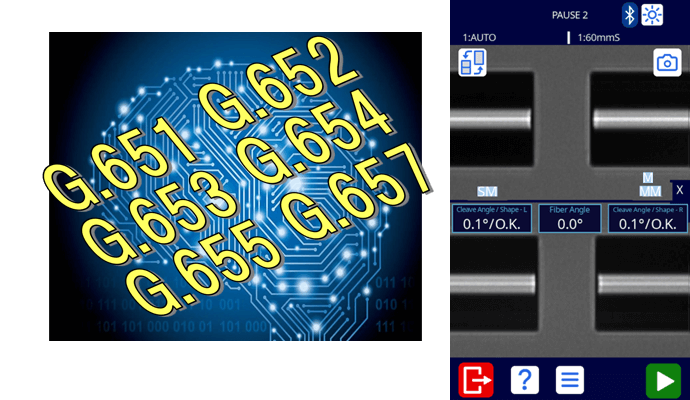

3. Active Fusion control by fiber discrimination

Adequate splice parameters may differ depending on fiber type.
The 100S fusion splicer automatically applies the optimum splice parameters depending on the ﬁber type.

Active Blade Management Technology

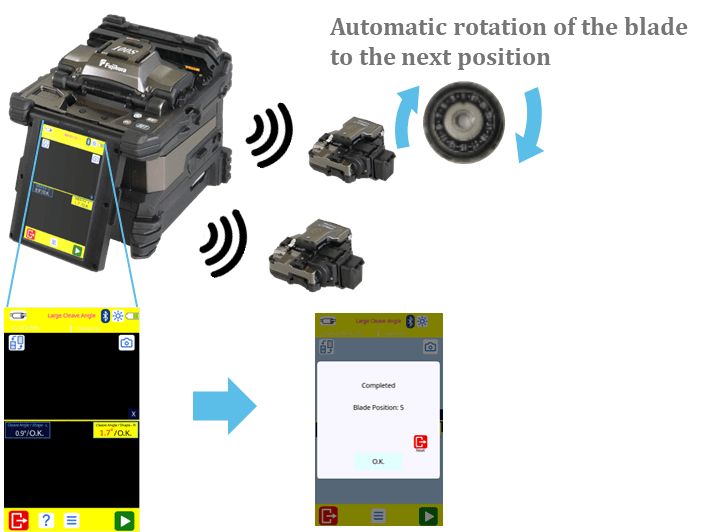

1. Active Blade rotation by motor

The 100S fusion splicer and CT60 ﬁber cleaver are enabled with wireless data connectivity. This capability allows automatic cleaver blade rotation when the 100S fusion splicer judges the blade is worn.
The 100S fusion splicer can connect to two CT60s simultaneously.

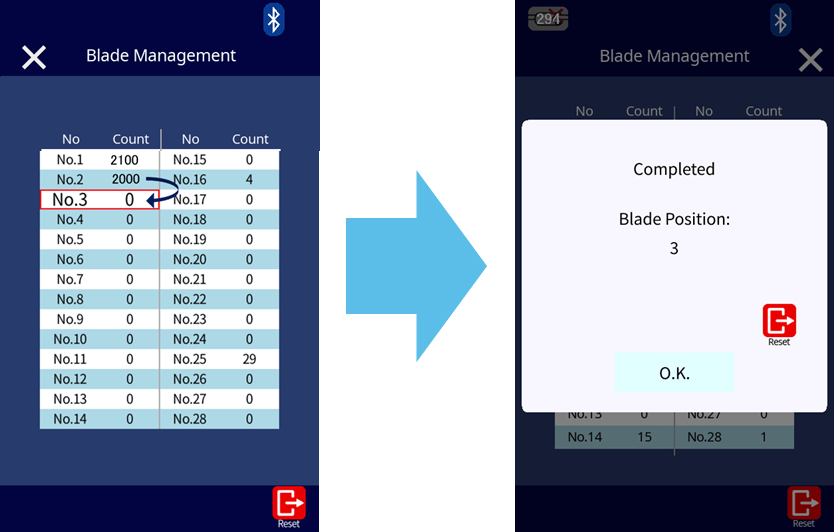

2. Active Blade life management

The 100S fusion splicer displays the remaining blade life and informs the user when a blade height change, position change, or new blade is required.

Active Fusion Control Technology
×
Active Blade Management Technology

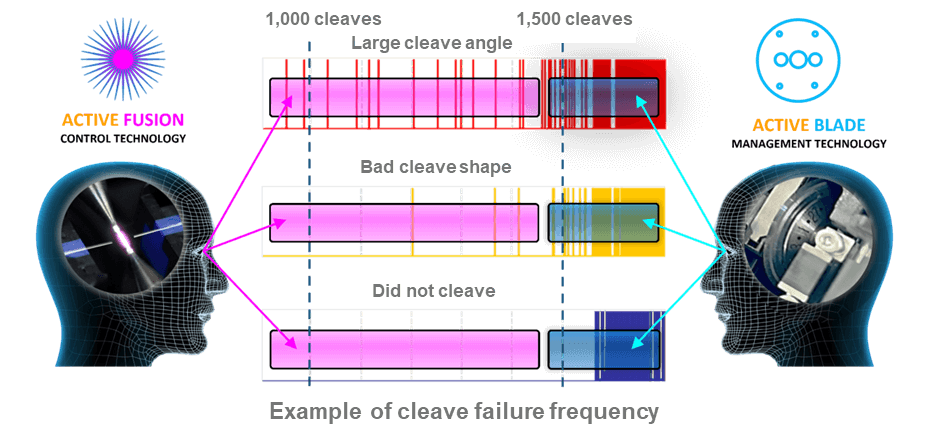

The below graphs show the number of cleaves on the horizontal line with frequency of large cleave angle, bad cleave shape and no cleave at all. When the frequency of large cleave angle increases, Active Blade Management Technology can detect this increasing ratio point and rotate the blade position automatically. Active Blade Management Technology significantly reduces frequency of large cleave angles occurring but even when it does occur Active Fusion Control Technology can reduce high splice loss by precise fusion control.

The 100S fusion splicer can minimize the occurrence of high splice loss and contribute to reduce the risk of re-Installation by using these 2 key technologies together.
