Ribbon Fiber Stripper
RS02/03

How to wireless communication setting for RS03

WATCH THIS VIDEO

How wireless communication works ?

    Fusion splicer setting                                      Changing automatically

Automatically set temperature depending of splicer mode

              Fusion splicer setting                                      Changing automatically

Higher temperature for SWR fiber

Manage the numbers of stripping

How wireless communication works ?

Fusion splicer setting

Changing automatically Temperature Level2

Automatically set temperature depending of splicer mode

Fusion splicer setting

Changing automatically Temperature Level4

Higher temperature for SWR fiber

Manage the numbers of stripping

Necessity of the wireless communication

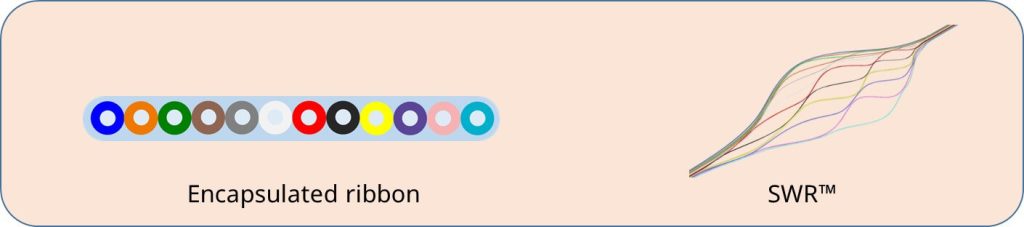

The proper heating temperature depends on the fiber ribbon structure.

Improper heating temperature may make the coating remaining on the surface of stripper or fiber.

The proper heating temperature depends on the fiber ribbon structure.

Encapsulated ribbon

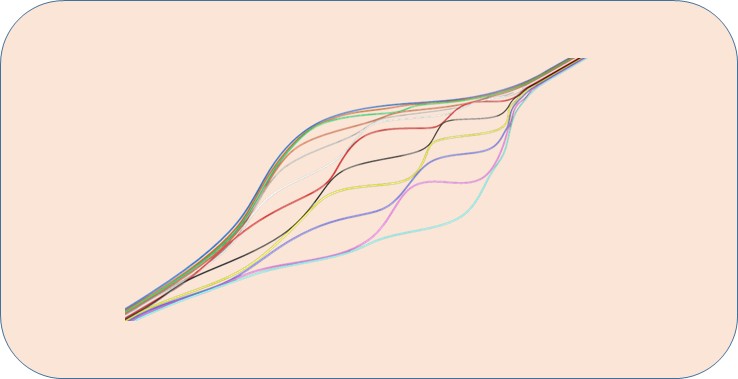

SWR

Improper heating temperature may make the coating remaining on the surface of stripper or fiber.

Shatter the coating

Remain the coating

How to “paring” between splicer and stripper

1. Press the Power button and turn the splicer ON.

1. Press the Power button and turn the splicer ON.

Splicer settings

Splicer settings

➊Press the [Bluetooth] icon.

➋Set [Splicer] and [Stripper] setting to “ON”.

➌Tap [①, ②, ③] in this order.
OFF to ON

➍Open the [Pairing With Stripper] screen.

2. Press the Power button and turn the stripper ON.


Press and hold the “LINK” button of the stripper for 6 seconds.
The Link LED will begin blinking.

*LED blinks during paring process

2. Press the Power button and turn the stripper ON.

Press and hold the “LINK” button of the stripper for 6 seconds.
The Link LED will begin blinking.

*LED blinks during paring process

Splicer Settings

Splicer settings

➊ Tap the S/N icon of RS.

➋It turns blue and appear “Paired”.

➌The “LINK” LED stops blinking and lights on.

➍RS information appears.

How to turn the wireless communication OFF

Step 1 Press and Hold the Link button for 6 seconds.

                      Step2 Remove the battery.

Step 1 Press and Hold the Link button for 6 seconds.

     LINK button

Blue LED turns off

Step2 Remove the battery.

How to change other settings

Setting of heating conditions
Buzzer setting
Eco mode setting
Alarm setting
Power off time setting

Splicer Settings

Setting of heating conditions
Buzzer setting
Eco mode setting
Alarm setting
Power off time setting

Splicer Settings

➊Tap the Home button.

➋Tap More Settings.

➌Tap Stripper Settings.

➍Select and change settings.
